The quality of a PCBA is largely determined by a crucial yet often underestimated step, soldering. Just like the foundation of a building, soldering securely connects electronic components to the circuit board, ensures stability. However, soldering isn’t always flawless. Soldering defects can severely impact the functionality and reliability of the PCBA. These defects may not only reduce product performance but can also lead to failures, or shorten the lifespan of product.
Common Types of Soldering Defects and Their Causes
There are various types of soldering defects, each with specific causes and impacts. Understanding these common defects is crucial for effective quality control:
- Voids: Tiny bubbles trapped in the solder joint. These are voids, which form when gas isn’t fully expelled during the soldering process. Voids reduce the strength and conductivity of the solder joint.

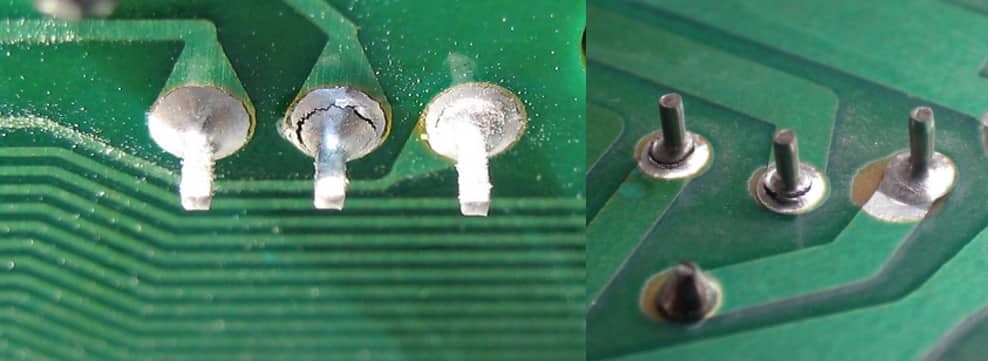

- Cold Soldering: If the soldering temperature is not hot enough or the solder does not fully melt, cold soldering occurs. This results in poor connections, much like glue not fully adhering to surfaces, causing intermittent issues like flickering lights.

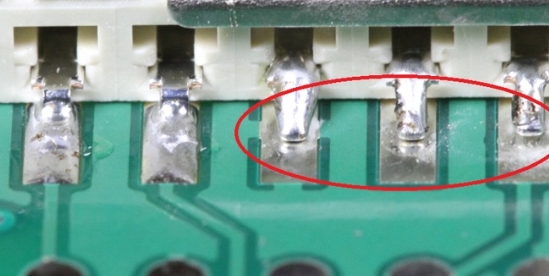

- Bridging: When too much solder is applied or soldering is not precise, it causes short circuits between adjacent solder joints. This disrupts the functionality of the circuit and could damage components.
- Dry Joints (Incomplete Soldering): Sometimes, solder joints may appear normal, but internally they lack a solid connection. Dry joints lead to poor contact and intermittent failures, making them difficult to troubleshoot.
Key Factors Affecting Soldering Quality
Soldering quality is influenced by several factors, and controlling them is essential for optimal results:
- Soldering Temperature Profile: Reflow soldering is like baking in an oven; it requires a specific temperature profile to ensure the solder melts, stays molten for a period, and then cools slowly. Improper temperature curves lead to poor solder joints.
- Solder Material: Different solder materials have distinct properties. Using the correct type of solder ensures better quality. For environmental reasons, we recommend using lead-free solder to maintain quality while protecting the environment.

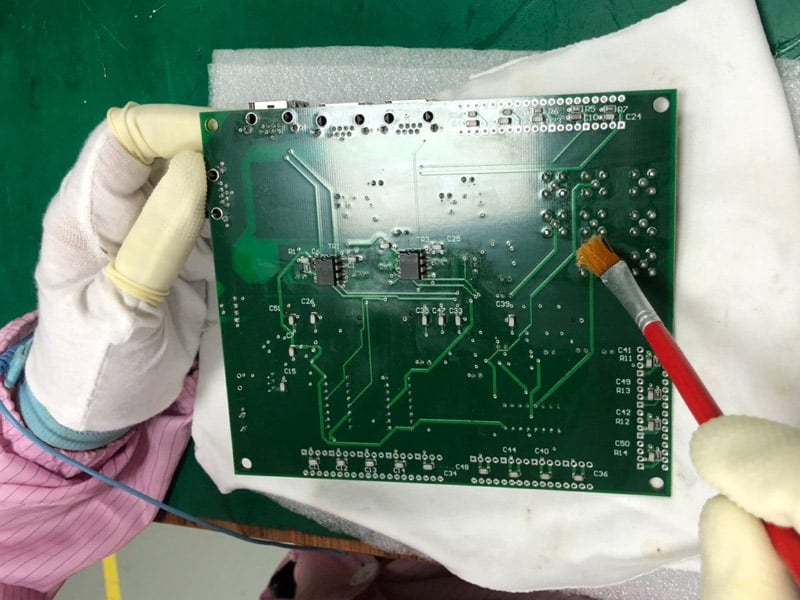

- PCB Surface Cleanliness: If the PCB surface is contaminated with dust or oil, it can affect solder adhesion, leading to defects.
- Soldering Equipment: Manual and automated soldering equipment each have their advantages and disadvantages. While manual soldering is flexible, yet less Automated equipment, on the other hand, offers higher accuracy and efficiency. Choosing the right soldering method is paramount for improving soldering quality.
Solutions to Soldering Defects
To address soldering defects, we focus on prevention and detection, with an emphasis on preventative measures:
- Prevention: Optimize soldering parameters (like temperature and time) and ensure components and PCB surfaces are clean to minimize the likelihood of defects.

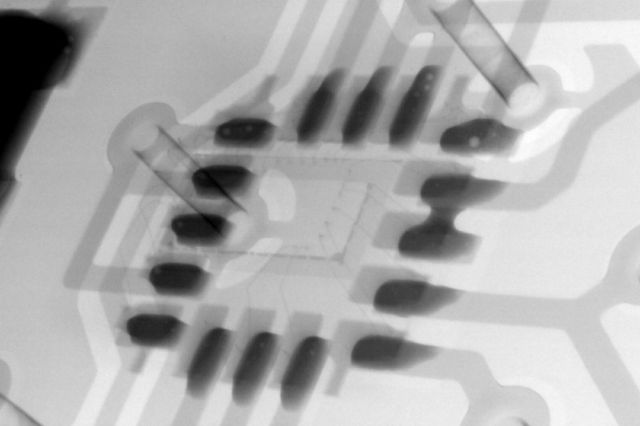

- Real-Time Detection: X-ray inspection equipment can quickly identify soldering defects. This technology allows for a thorough examination of solder joints, ensuring each joint meets quality standards.
- Automation: Automated Optical Inspection (AOI) systems enable efficient and accurate detection of soldering defects, ensuring product consistency and quality.
- Process Optimization: By analyzing data from the production process, continuous improvements can be made to the soldering process, reducing defect rates and improving overall efficiency.
Case Study: Voids Causing Circuit Disconnection
During a production run, some samples exhibited malfuntion. Upon inspection, it was discovered that the solder joints had numerous voids, which caused poor contact and resulted in circuit disconnection. The reason was traced back to an incorrect soldering temperature profile that failed to expel all the gas during the process. Readjusting the temperature profile and refining the soldering process
Some images are sourced online. Please contact us for removal if any copyright concerns arise.
